Esta máquina podría hacer núcleo y tubo de papel espiral. Es automático completo.
Esta máquina podría hacer un tubo de papel espiral y núcleo.
1. Introducción a la máquina

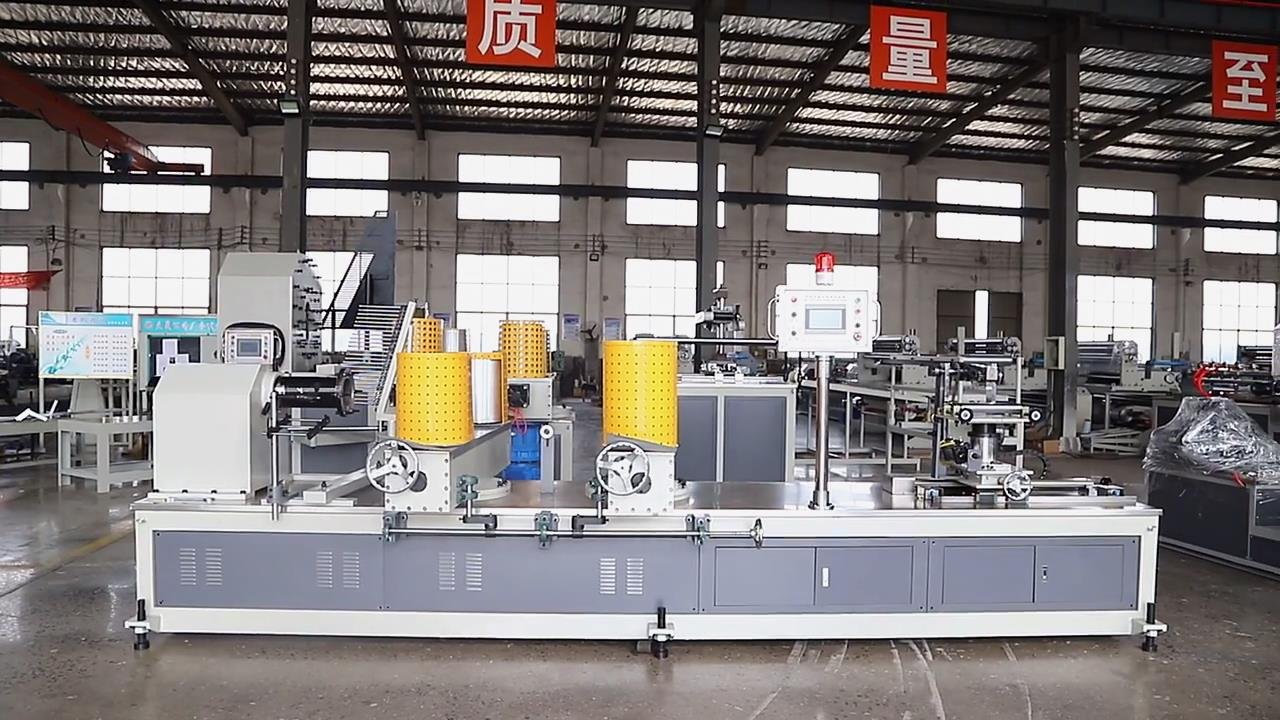

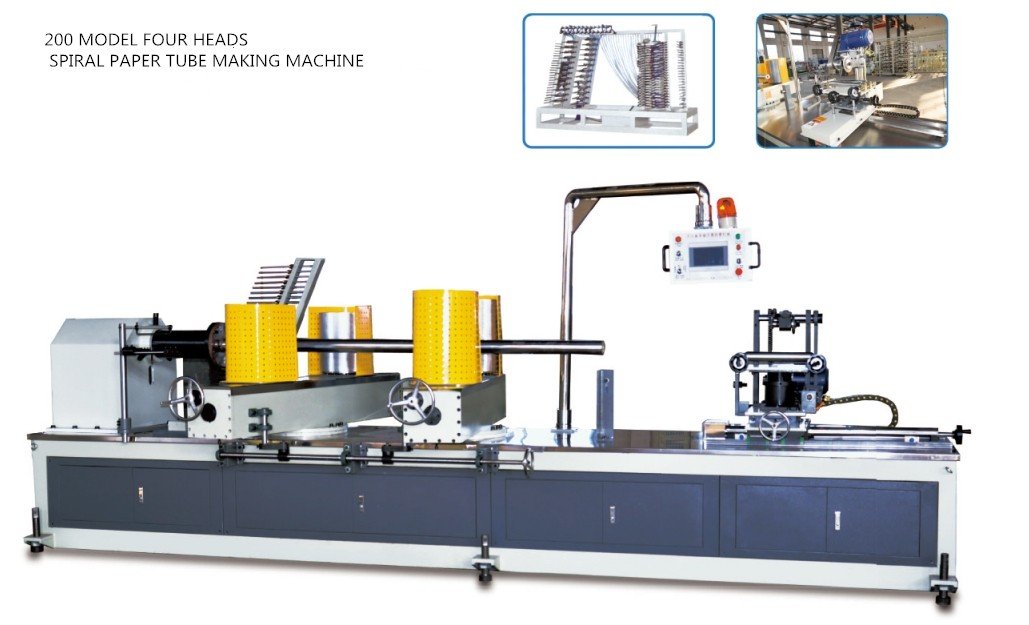

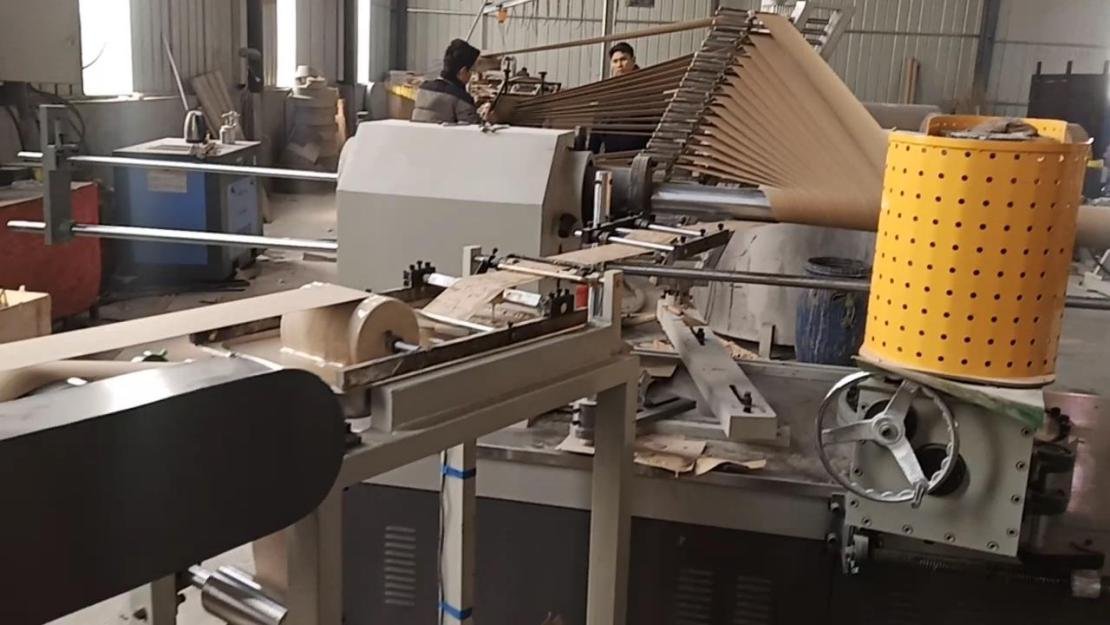

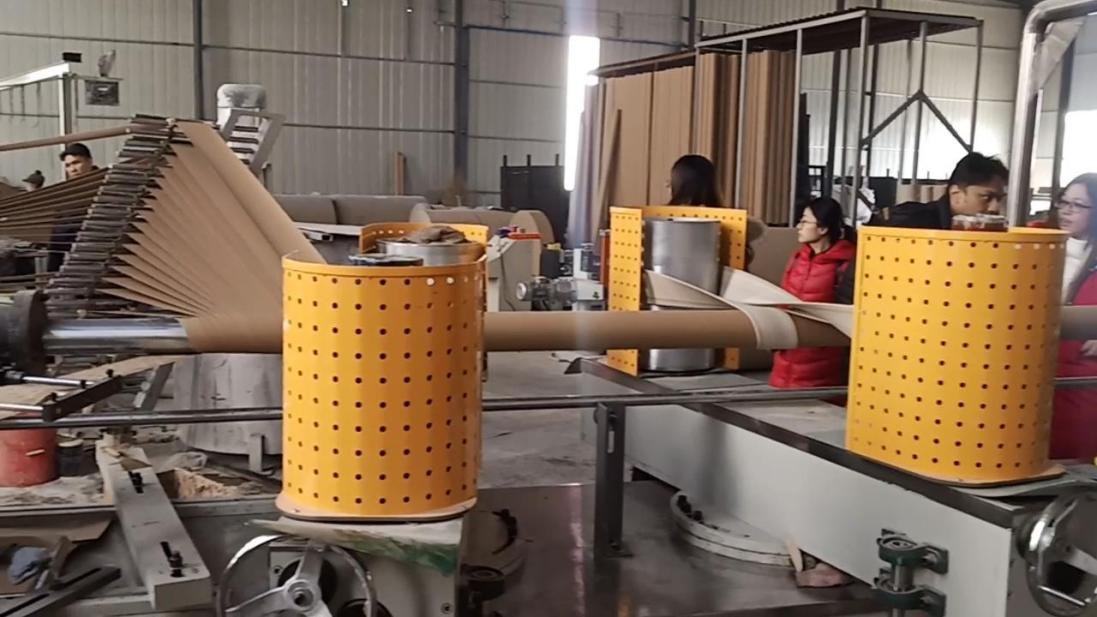

Tubo de papel espiral modelo de 200 mm Máquina de fabricación
Esta máquina adopta la tecnología avanzada de producción y procesamiento, con el conjunto principal de la rueda de conducción principal, el control de frecuencia digital de computadora completo, el seguimiento automático en el corte. Esta máquina de fabricación de tubo de papel es adecuada para fabricar y procesar el tubo de papel o el núcleo de tubo en papel, fibra química de fibra química , Texti le, plástico, medicina, alimentos y embalaje.
2.Parámetro técnico principal
Four Heads 200mm Paper Tube Machine | |
1.Technical parameter | |
Roll tube paper layer | 3-25 (layers) |
Paper tube diameter | 30-200 (mm) |
Paper tube thickness | 5-23 (mm) |
The Finished Paper Tube Core Cutter Length | ≥1000mm |
Production speed | 0-25 (m / min) |
Fixed-length mode | Light Control (Infrared) |
Winding machine head | Four machine head |
Cutting method | Single round knife cutting |
Core mold fixed way | Flange plus tight |
Glue way | Double-sided adhesive |
control method | Frequency |
Input voltage | 380V / 220V |
Number of operators | 1-3 people |
2.Size | |
Host Size: L * W * H | 4200mm*1700mm*1900mm |
Land area: length *width | 20000mm*9000mm |
Hub diameter | 294mm |
Hub height | 360mm/430mm |
Minimum track | 1000mm |
The biggest argument | 1250mm |
total weight | 4500kg |
3.Drive System | |
Monitor rate | 18kw Shanghai strong speed |
Host speed | 1400r / min |
The maximum wheel speed | 47r / min |
Hub output torque | 8500N.m |
Reducer models | WPO 155 Hangzhou Xiaoshan |
Drive chain model | 12A * 2 |
Wheel drive | 4 wheel drive |
Cutter motor | 0.4kw gear motor Shanghai Ott |
Bearing | Universal bearings |
4.Control System | |
Inverter | An Rui Ji products |
The main implementation of the device (contactors,etc.) | Chint product |
Signal element (proximity switch, etc.) | Shanghai industrial products |
Cylinder components | tian ao products |
Synchronous control | pneumatic |
Fixed-length way | Proximity switch |
PLC controller | wei kong products |
HMI | Kunlun products |
Emergency stop button | Jiangyin Yangtze River brand |
5.Configuration device | |
Drop tube rack | automatic |
Belt adjustment | Adjust manually |
Paper frame swing angle | Adjust manually |
For glue | Automatic stainless steel heating plastic tank |
Bottom paper for lubrication | Automatic lubrication of stainless steel basin |
Tension adjustment | Mechanical adjustment |
Paper holder type | Right-angle fixed lifting on the paper holder |
Roll mandrel | 1 |
Roll tube belt | 2 pieces |
Applications | Have |
Bottom, surface paper device | Stainless steel paper holder, paper cone |
Under the rack | Stainless steel plate |
Host | Stainless steel countertops |
Paper guide | stainless steel pipe |

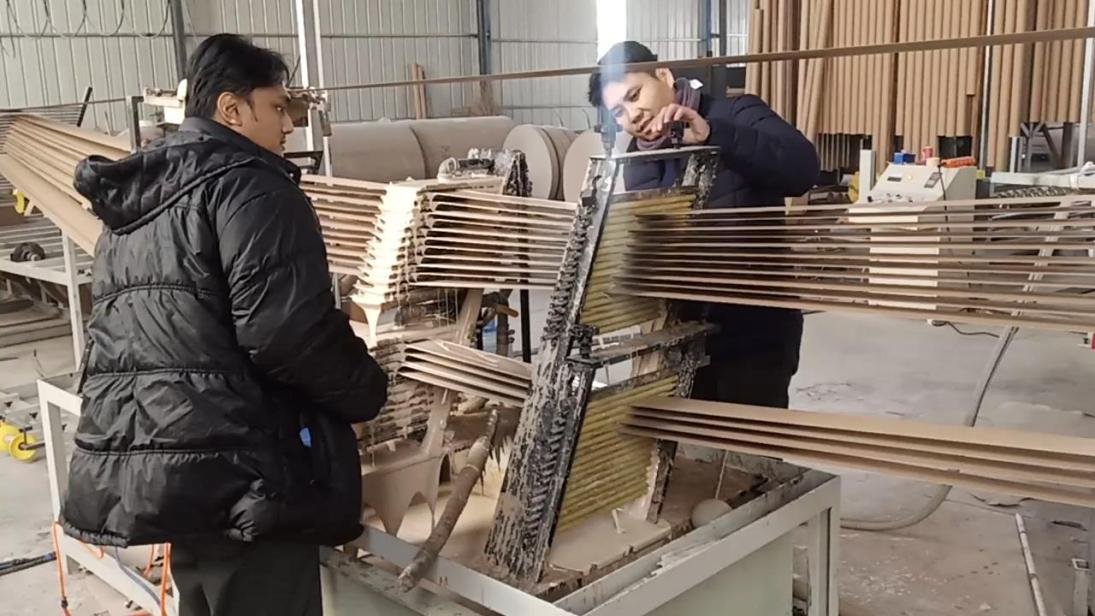

3. Machine Parts
